Highfield Patrol 540 2024 $53,990.00 CAD
Description
Price Includes: Boat, Motor, T-Top, Trailer and Rigging. Taxes are additional.
Highfield aluminum RIBs specializes in aluminum hulled rigid inflatable boats (RIBS). They evolved from many years of development in some of the toughest conditions in the world, the Great Barrier Reef of Northern Australia. A direct descendant of the Australian Swift range of aluminium hulled RIBS now in service for over 20 years, they have supplied boats for leisure as well as professional uses with most of Australia’s Water Police and government agencies. Tough, reliable and thoroughly tested, Highfield comes to you with a champions pedigree. Highfield is now one of the most popular brands of RIBS in the world with distribution in Europe, Pacific, Caribbean, the Americas and Asia.
The Patrol range of commercial quality RIBs are designed to work both excellently as a long distance family cruiser or a hardcore work boat. Built to withstand the toughest of conditions.
The hull is built from 5083 aluminium plates with 6 and 10mm stringers. With their super deep V, wide chines and large diameter tube, they offer high manoeuvrability, high safety and a soft dry ride even in the roughest conditions.
The range offers something for almost every requirement, from Sailing club support to Police and Rescue applications.
The Patrol boats carry large loads and plane quickly and easily with little horse-power. For charter boat and commercial operators, the modular set-up option means that we can build a layout that suits your needs. These boats are ideal pursuit craft or work boats and can be configured with different seating and console options. When safety, toughness & reliability really matter, the Patrol range should be your first port of call. With MCA rating & commercial coding available, the Patrol range is perfect for commercial chartering or working offshore too.

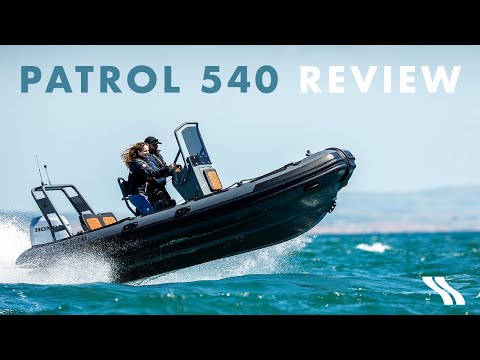

Highfield Patrol 540
| Length: | 17' 9" |
| Weight: | 1089 lb |
| Max Power: | 115 hp |
STANDARD FEATURES
- ORCA® Hypalon or Valmex® PVC tube
- Bow Cushion
- Welded seams (PVC)
- Flush mount non-return valves
- High tensile chromated & powder coated aluminum hull
- Integrated transom supports
- Self-draining deck
- Integrated under-deck fuel tank (105L)
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rubbing strake
- Keel guard
- Highfield dry bag
- Foot pump, oars, repair kit
OPTIONAL EQUIPMENT
- Electrical Pack for Console
- Electrical Pack for Boat
- Single Jockey or Bolster
- T-Top
- Rollbar
- Dive Rack
- Ladder
- Roll bar with ladder
- Shower Kit
- Boat Cover
- Brushed foam teak finish deck
- Carbon Dash
TECHNICAL SPECIFICATION
| INTERNAL LENGTH | 14' 2" |
| OVERALL WIDTH | 7' 11" |
| INTERNAL WIDTH | 4' 4" |
| DEAD RISE | 24° |
| TUBE DIAMETER | 20" |
| NUMBER OF AIR CHAMBERS | 6 |
| MAXIMUM LOAD | 2782 lb |
| MAXIMUM PEOPLE | 12 |
| ENGINE SHAFT | Long |
| FUEL TANK | 27.7 gal |
| DESIGN CATEGORY | C |
